Whether you need power or signal or a combination of the two, Signa-Tek can do it for you.

	LEAF SPRING BRUSHES

Leaf Spring Brush Assembly

Leaf Spring

Leaf Spring Brush

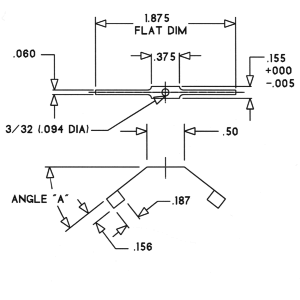

LEAF SPRING BRUSH ASSEMBLY P/N LSBA1000-XX

LEAF SPRING BRUSH P/N LSB1000-XX
DASH NO.	WIDTH "A"	Dim. "B"	Dim. "C"	Amps
-01	.040	.187	.156	2.5
-02	.062	.250	.219	4.0
-03	.094	.438	.366	11.0
-04	.125	.584	.487	19.0
